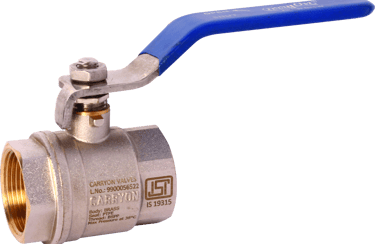

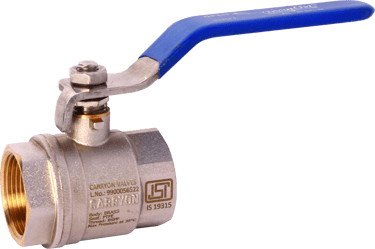

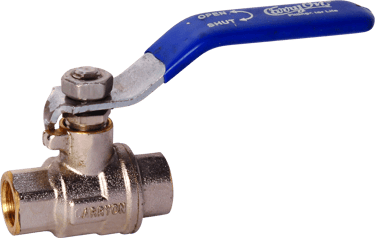

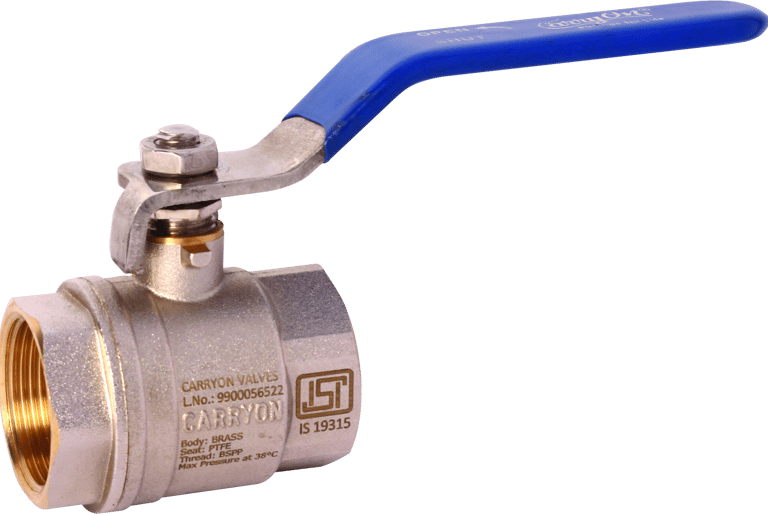

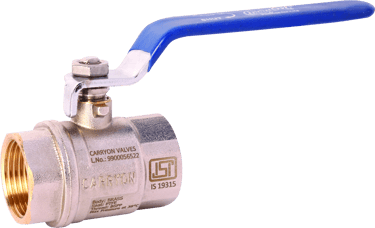

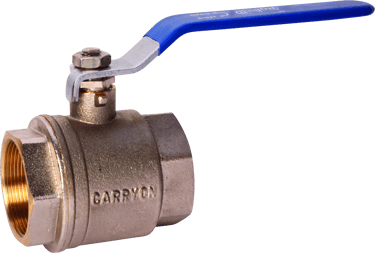

Brass Forged Ball Valve PN25

IS 19315:2025

Product Overview

CarryOn proudly introduces India’s first BIS Certified Brass Forged Ball Valve, developed as per IS 19315:2025 Standard — a standard created around our product’s performance excellence. Engineered for precision and durability, this valve ensures dependable operation for water, air, gas, and oil applications. Each valve is fully forged from high-quality brass for maximum strength, leak-proof performance, and longevity.

Why CarryOn Brass Ball Valves?

• 100% Made in India – Every process, from forging to finishing, is carried out in-house under strict quality control.

• Every Single Piece Tested – Each valve undergoes hydraulic, air, and functional testing before dispatch to ensure zero leakage and reliable performance.

• First BIS Certified Manufacturer – CarryOn is the first company in India to receive BIS Certification for Brass Ball Valves, setting new benchmarks in quality and compliance.

• OEM Manufacturing Expertise – We partner with OEMs and industrial clients to design and manufacture custom brass-forged valves and components, made precisely as per client drawings and specifications.

• In-House Production Facility – All forging, machining, plating, and assembly processes are executed within our advanced facility, ensuring total process control and consistent accuracy.

•Sustainability & Safety – Low Lead, Safe for Health, and compliant with international safety standards.

Size Range: 1/4” to 2”

Technical Features:

‣ Full Bore, Two Piece Design

‣Premium PTFE Body Seat & Gland Rings

‣Quarter Turn, Lever Operated

‣Nickel & Chrome Plated Finish

‣Anti Blow-out Stem

‣Screwed Female Ends BSP/NPT Threads

‣Anti Corrosive

‣Stainless Steel Lever avoids Rusting

‣Stainless Steel parts provide Extra Strength

Test Pressure:

Hydraulic:

•Body Test Pressure -35 Kg/cm²

•Working Test Pressure - 25 Kg/cm cm²

Air Test Pressure : 6.5 Kg/cm cm²

Maximum Working Temperature: -2 to +110 °C

Application : Water, Oil, Air, Gas

CarryOn Commitment

For over 33 years, CarryOn has been manufacturing precision-engineered brass products that meet the highest international standards. Our focus remains simple — quality with no compromise, accuracy with assurance, and performance that lasts a lifetime.

NOTE: Due to continuous development and improvement the above specifications are subject to change from time to time. We request you to confirm before placing any orders.
